ET2 MAX

Auto Steering System

Make Every Meter Count

No Wheel Angle Sensor

No Wheel Angle Sensor Required for Easier Installation

Supports Custom Integration

Radio, CORS, and PPP correction solutions for different application scenarios

Supports Multiple RTK Correction Methods

Supports Secondary Development for Deeper Integration with Steering and Vehicle Control Systems

SPECIFICATIONS

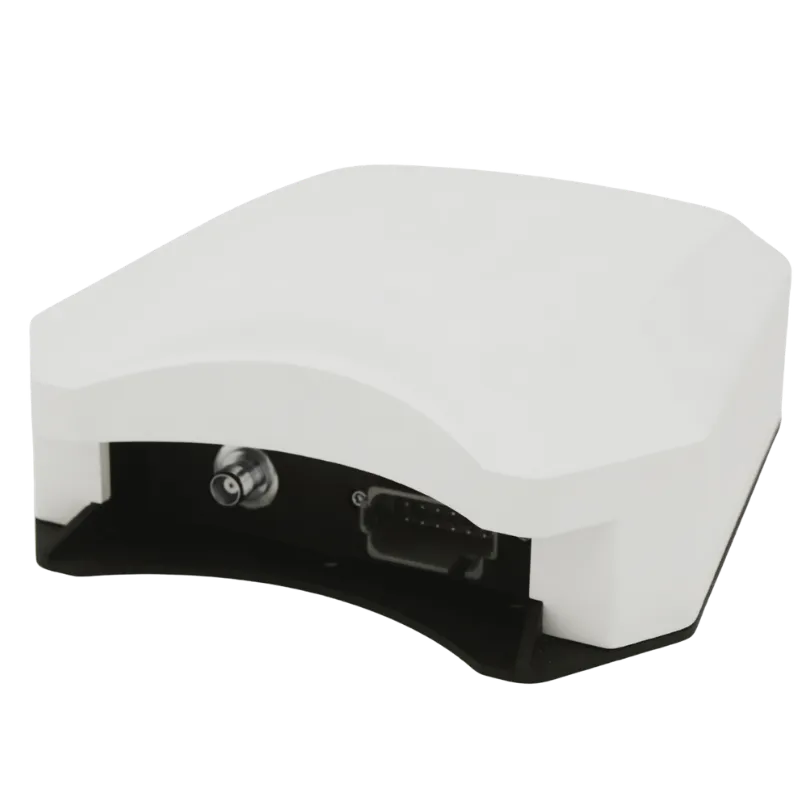

F10GNSS Receiver

F10 GNSS receiver, compact and versatile, plug-and-play, cm-level accuracy

Electric Steering Wheel9–30 N·m Torque

13" TabletAndroid 14

GNSS Receiver
Signal Tracking
Channels: 1408 Channels
BDS B1I/B2I/B3I
GPS L1C/A/L2P(Y)/L2C/L5
GLONASS G1/G2
Galileo E1/E5a/E5b
QZSS L1/L2/L5
SBAS L1C/A
Cold Start Time: <30s
Initialization Time: <5s (Typical)
RTK Initialization Reliability: >99.9%, Reacquisition: <1s
Data Interface
Data Output: NMEA-0183
Update Rate: 1~20Hz (Optional)
Baud Rate: 9600~460800
Interfaces: RS232×1, CAN×2, RJ45×1, TNC×1
Correction Format: RTCM3.0/3.2
Accuracy Specifications
Single Point Accuracy: Vertical ≤5m, Horizontal ≤2.5m
RTK Accuracy: Horizontal 0.8cm+1ppm, Vertical 1.5cm+1ppm
Velocity Accuracy: 0.03m/s
RTD Accuracy: Vertical ±1.0m, Horizontal ±0.5m
GNSS Heading Positioning Accuracy: (0.2/R)
Heading Accuracy: 0.2°
Acceleration Range: ±6g
Roll Range: 3-axis ±90°
Pitch Accuracy: ±0.1°
Electrical Specifications
Power Consumption: <4.0W
Power Supply: 9~36VDC
Physical Characteristics
Weight: <1.2kg
Operating Temperature: -45℃~+75℃
Storage Temperature: -55℃~+85℃
Dimensions: 207.2mm×214.8mm×78.5mm
Protection Rating: IP67 with excellent dustproof and waterproof performance
Shock & Vibration Resistance: Operates normally after a 2m free fall without severe damage

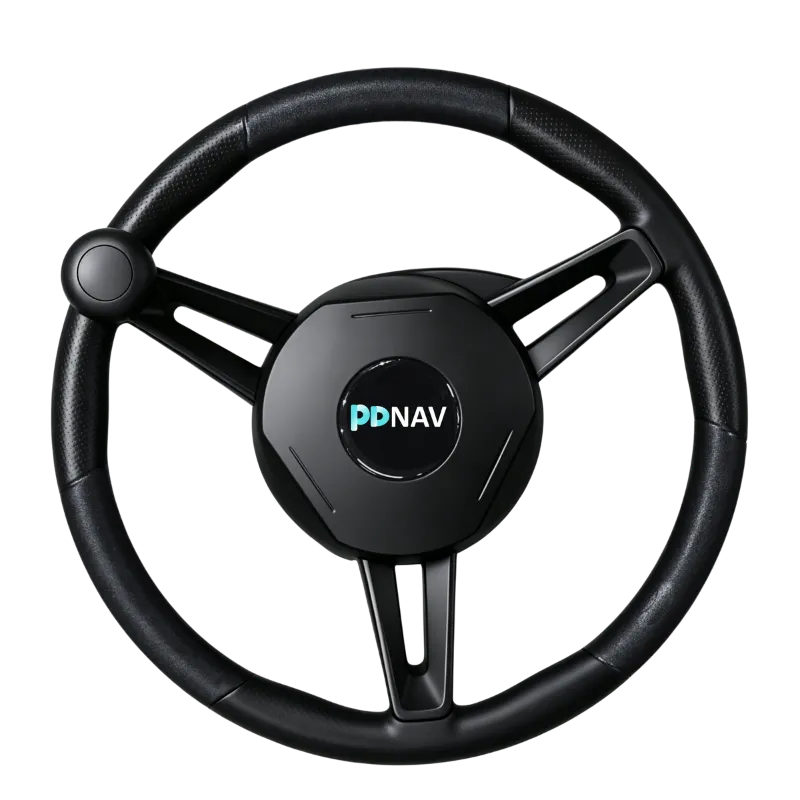

Electric Steering Wheel
Steering Torque: 9~30N·m, suitable for small, medium, and high-horsepower tractors
Steering Wheel Voltage: 9~30V
Rated Power: 50W
Rated Torque: 5Nm
Peak Torque: 9Nm
Protection Rating: IP67

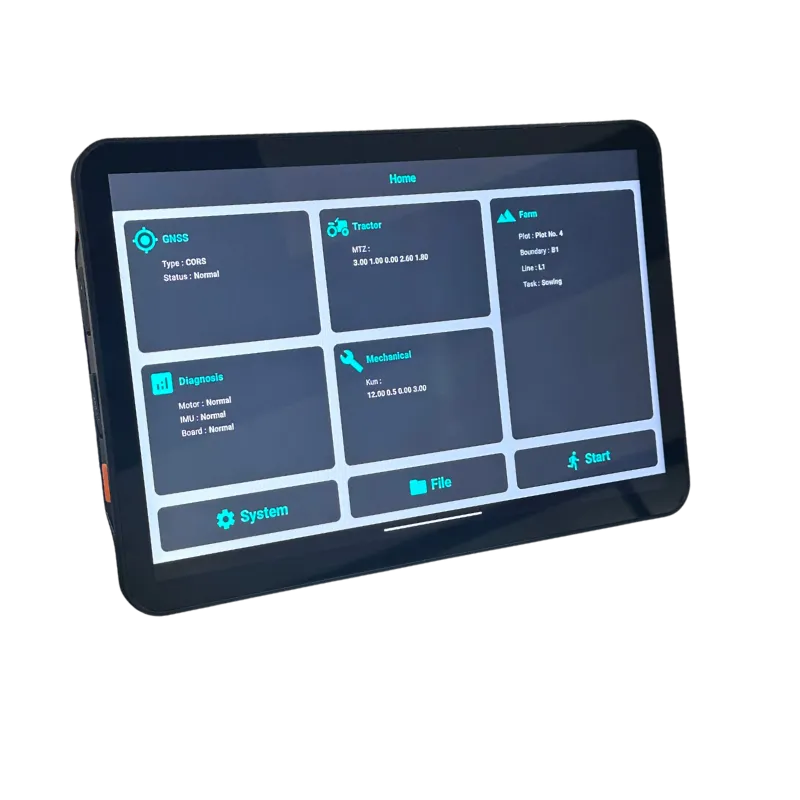

13-Inch Tablet
System: Android 14
Screen Size: 13.1 inches
Dimensions: 308×204×22mm
Brightness: 750 nits
Power Supply: 9~36V
Interfaces: RS232×2, CAN×3, Camera×4, Ethernet×1
Protection Rating: IP67
