P10 RTK

Real-time RTK · All-in-One

Tilt-and-Measure with Centimeter Accuracy

2-Hour Fast Charging / Work Never Stops

10,000mWh Battery for All-Day Operation

Get a Quote Specifications

How Can
We Help You?

Choose the option that fits your needs. We're here to help.

Get a Quote Product Inquiry Technical Support

Product Inquiry

High-Precision Surveying System

Extreme lightweight design, precise manufacturing, light yet powerful.

Measurement without tilting toward the center.

Strong signal reception for all-condition signals.

Long-lasting battery life and fast charging.

SPECIFICATIONS

Satellites and Accuracy

Satellite Systems: BDS, GPS, GLONASS, Galileo, QZSS, IRNSS and SBAS; supports BDS-3

BDS: B1I, B2I, B3I, B1C, B23, B2b*

GPS: L1C/A, L2C, L2P, L5

GLONASS: G1, G2, G3*

Galileo: E1, E5a, E5b, E6*

QZSS: L1C/A, L1C, L2C, L5 · IRNSS: L5* · SBAS: L1

Channels: 1408 · Initialization Reliability: 99.99%

Data Output

Differential Data: RTCM2.X, RTCM3.X, CMR

Positioning Data: NMEA-0183

Static Data: RINEX 2.11, RINEX 3.02

Accuracy

High-Precision Static: Horizontal ±(2.5+0.1×10⁻⁶×D) mm, Vertical ±(3.5+0.4×10⁻⁶×D) mm

Static and Rapid Static: Horizontal ±(2.5+0.5×10⁻⁶×D) mm, Vertical ±(5+0.5×10⁻⁶×D) mm

RTK Accuracy: Horizontal ±(8+1×10⁻⁶×D) mm, Vertical ±(15+1×10⁻⁶×D) mm

Tilt Compensation Accuracy: 8 mm + 0.3 mm/° tilt (accuracy < 2 cm within 30°)

Data Communication

Wireless Connection: Supports Wi-Fi data link

Wi-Fi: IEEE 802.11a/b/g/n/ac

Network Module: Controller supports 4G full network communication

Radio: Integrated transceiver radio

GNSS + IMU

IMU Update Rate: 200 Hz

Tilt Angle: 0 – 60°

Seamless Super IMU: 5th-generation Ultra-IMU technology with automatic initialization and reliable accuracy

Controller

Operating System: Android 14 GMS

Processor: MediaTek 6769 Octa-Core 2.0GHz

RAM + ROM: 4GB + 64GB

Touchscreen: HD+ LCD Capacitive Multi-Touch, 720 × 1440 Resolution

Battery Capacity: 8000mAh Battery

Camera: 8MP Main Camera, Supports High-Speed Autofocus and AR Measurement

Dust & Waterproof Rating: IP68

Display Brightness: 500 nits, supports glove mode and wet-hand operation, with T9 numeric keypad

User Interaction

Indicators: Dual LED indicators (differential data indicator + power indicator)

Button: Single button

Physical Characteristics

Dimensions: 13.5 cm × 6 cm

Weight: 0.7 kg

Operating Temperature: -45°C to +75°C

Storage Temperature: -55°C to +85°C

Waterproof and Dustproof: IP68 (withstands immersion in 1 meter of water for 30 minutes)

Impact Resistance: IK08 (withstands mechanical impact equivalent to a 2.5 kg steel hammer and survives a 3 m drop)

Electrical Specifications

Battery: Typical rover operating time of over 17 hours

Full Charging Time: 2 hours

External Power Supply: DC 5-12V, supports power bank charging

Key Features

Lightweight yet Powerful, Surveying Without Worry

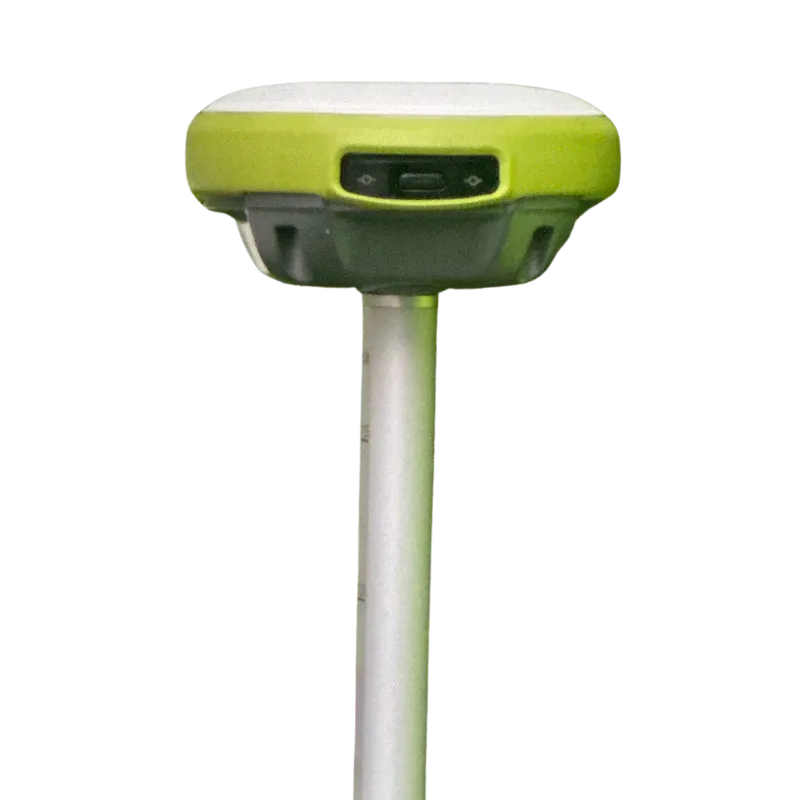

Ultra-Lightweight Design

Lightweight body, easy to field.

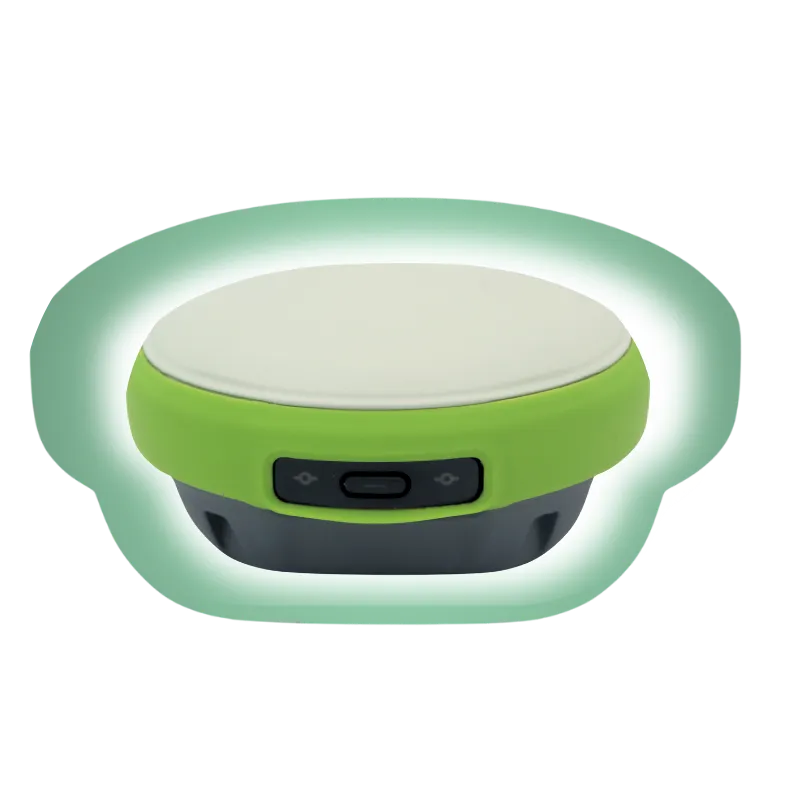

Tilt Compensation Surveying

Higher efficiency, accurate and reliable.

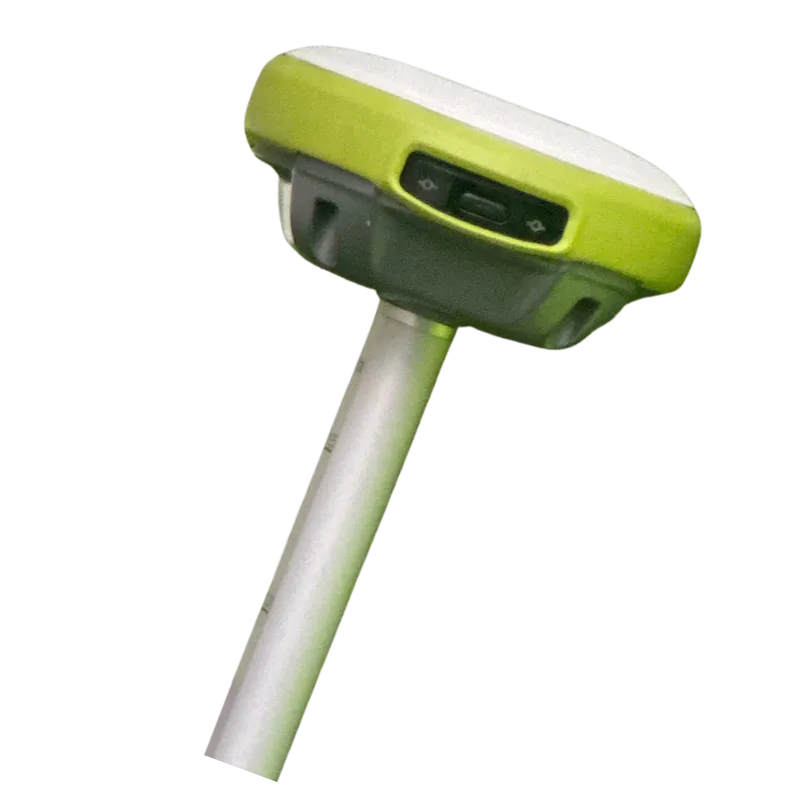

Long Battery Life and Fast Charging

All-day efficiency, stable operation.

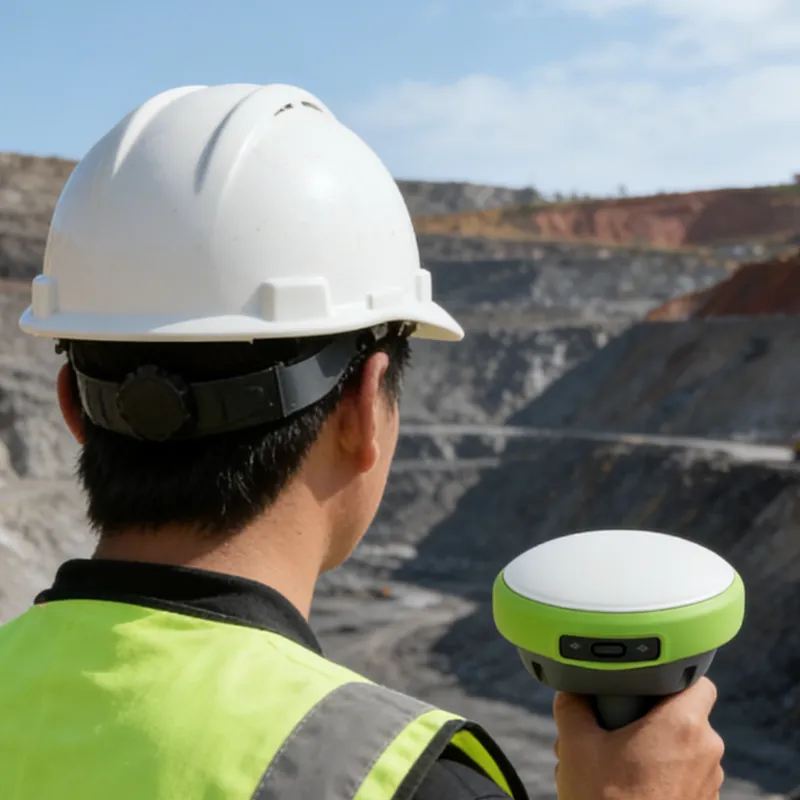

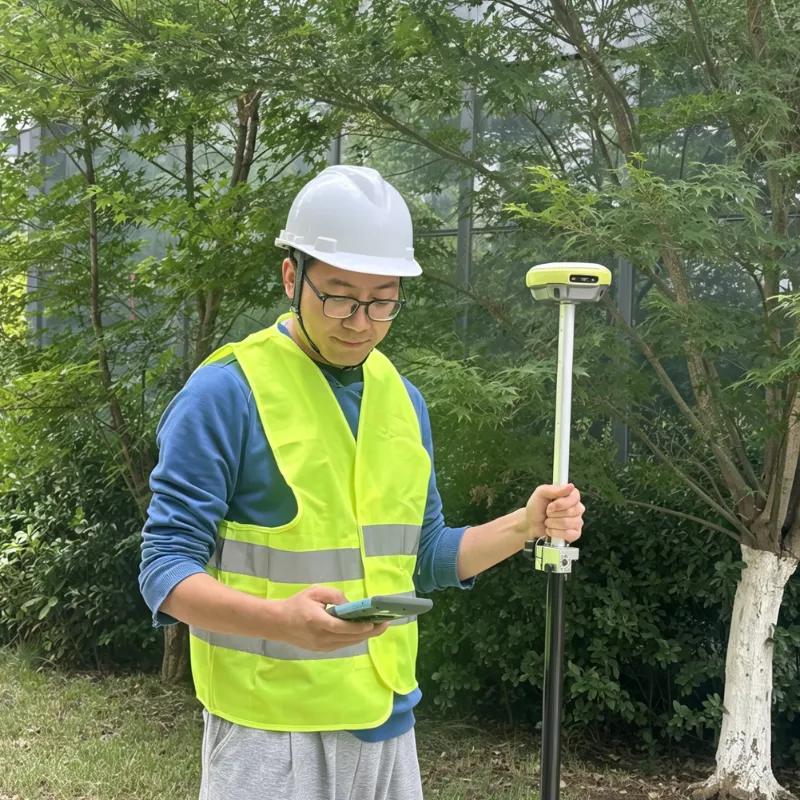

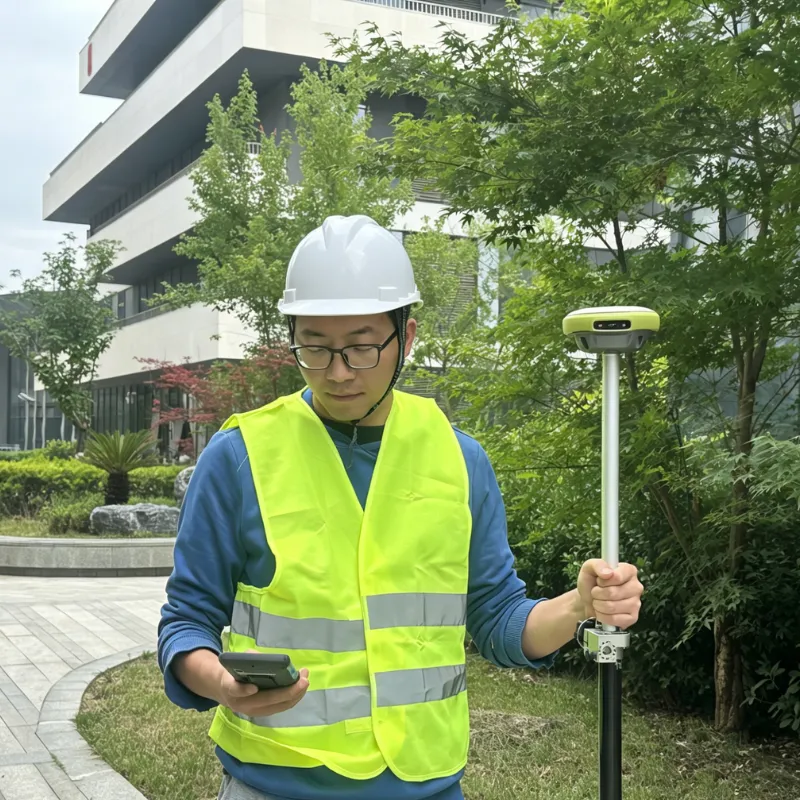

Application Scenarios

Measure Wherever You Go, Precision Wherever You Need
